Example 2: RC Background¶
The purpose of this notebook is to provide a broad introduction to reservoir computing (RC) by walking through the creation of an RC model within the ORC framework. RC was initially proposed independently by Maas, Natschläger, and Markram [1], and Jaeger [2] in the early 2000s, largely as a means of avoiding issues with training recurrent neural networks (RNNs) via backpropagation and gradient descent. Since then, the field of RC has exploded, introducing many RC inspired architectures and new applications of RC approaches.

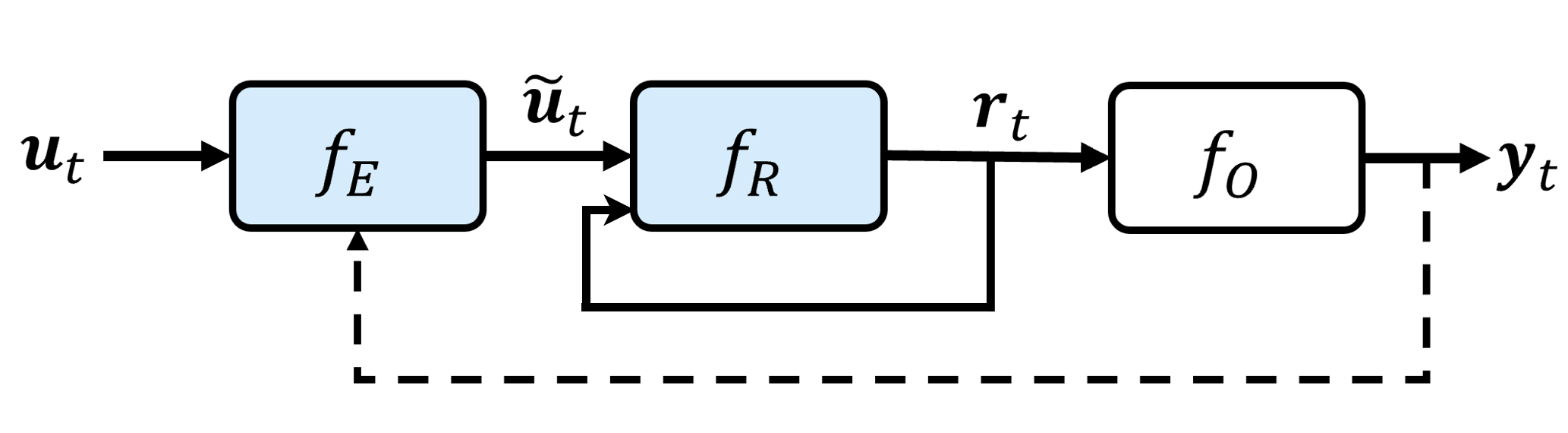

One of the central premises of ORC is that the vast majority of RC architectures can be decomposed into three components: an embedding that lifts a low-dimensional input signal $u_t$ to a high-dimensional space, a driver that propagates a high-dimensional latent state $r_t$, and a readout that maps the latent state back to a lower dimensional signal $\hat y_t$. More concretely, we can typically represent the embedding $f_E$, driver $f_R$, and readout $f_O$ as functions1. Schematically, a reservoir can be illustrated with these functions as a part of the below control loop. The shaded blue boxes are instantiated independent of training data, greatly simplifying the training of $f_O$.
More formally, each function can be defined:
$$f_{E} : \mathbb R^{N_u} \to \mathbb R^{N_r} \quad \text{with} \quad \tilde u_{t} = f_{E}(u_t),\quad \text{(embedding)}$$ $$f_{R} : \mathbb R^{N_r} \times \mathbb R^{N_r} \to \mathbb R^{N_r} \quad \text{with} \quad r_{t+1} = f_R(r_t, \tilde u_t), \quad \text{(driver)}$$ and $$f_{O} : \mathbb R^{N_y} \to \mathbb R^{N_r} \quad \text{with} \quad \hat y_{t} = f_O(r_t). \quad \text{(readout)}$$
We'll call $N_u$ the input dimension, $N_r$ the reservoir dimension, and $N_y$ the output dimension. RC makes the assumption that if the reservoir dimension is sufficiently large ($N_r \gg N_u$) and the dynamics of the driver are sufficiently "expressive," then the parameters/weights of both the embedding and driver can be set independent of any training data; only the readout layer is trained. This greatly simplifies the training of an RC in comparison to RNNs as it completely avoids backpropagation through time. It also allows for the implementation of a wider variety of embeddings and drivers, including physical implementations of RC.
Throughout the rest of this notebook, we'll illustrate how ORC can be used to create and train a RC for forecasting with user-defined embedding, driver, and readout functions. For this example, we use a discrete time reservoir, however, ORC is also capabable of using continuous time drivers as will be discussed in a future tutorial.
# imports
import equinox as eqx
import jax
import jax.numpy as jnp
import orc
from orc.utils.regressions import ridge_regression
Defining an embedding¶
By far, the most common choice for embedding function is to assume the form $f_{E}(u) = W_{E} u$ where $W_{E} \in \mathbb R ^{N_r \times N_u}$ with entries drawn independently according to some distribution. However, to illustrate that ORC allows for a very broad range of embeddings, we'll take $f_{E}$ to be a two-layer MLP with an ELU activation function. To do so, we'll inherit from orc.embeddings.EmbedBase, which expects us to specify an input dimension in_dim, a reservoir dimension res_dim, and define a method embed that maps from in_dim to res_dim.
# define embedding function
class ELUEmbedding(orc.embeddings.EmbedBase):
W1: jnp.ndarray # weight matrix for first layer of ELU MLP
W2: jnp.ndarray # weight matrix for second layer of ELU MLP
b1: jnp.ndarray # bias for first layer of ELU MLP
b2: jnp.ndarray # bias for second layer of ELU MLP
def __init__(self, in_dim, res_dim, seed=0):
super().__init__(in_dim=in_dim, res_dim=res_dim)
rkey = jax.random.key(seed)
W1key, W2key, b1key, b2key = jax.random.split(rkey, 4)
# random initialization of parameters of ELU MLP
self.W1 = jax.random.normal(W1key, shape=(res_dim // 2, in_dim)) / jnp.sqrt((res_dim // 2) * in_dim)
self.W2 = jax.random.normal(W2key, shape=(res_dim, res_dim // 2))/ jnp.sqrt(res_dim * (res_dim // 2))
self.b1 = jax.random.normal(b1key, shape=(res_dim // 2)) / jnp.sqrt(res_dim // 2)
self.b2 = jax.random.normal(b1key, shape=(res_dim)) / jnp.sqrt(res_dim)
def embed(self, in_state):
in_state = self.W1 @ in_state + self.b1
in_state = jax.nn.elu(in_state)
in_state = self.W2 @ in_state + self.b2
in_state = jax.nn.elu(in_state)
return in_state
Defining a driver¶
For the driver, we'll use the update equations of a gated recurrent unit (GRU). The GRU is already implemented in equinox so we need only wrap the existing eqx.Module in a DriverBase class. Although we redefine it here for illustrative purposes, this driver is actually built in to ORC!
# define driver function
class GRUDriver(orc.drivers.DriverBase):
gru: eqx.Module
def __init__(self, res_dim, seed=0):
super().__init__(res_dim=res_dim)
key = jax.random.key(seed)
self.gru = eqx.nn.GRUCell(res_dim, res_dim, key=key)
def advance(self, res_state, in_state):
return self.gru(in_state, res_state)
Defining a readout¶
While there is great flexibility in the assumed form of $f_E$ and $f_R$, $f_O$ is more restricted if we want to retain the ability to train the RC with a linear regression. We'll assume the output operator is linear, that is $f_O(r_t) = W_Or_t$ where $W_O \in \mathbb R^{N_y \times N_r}$. We initialize the readout layer of our RC by subclassing orc.readouts.ReadoutBase and defining a readout method. We'll initialize $W_O$ with zeros, although the initialization won't affect training.
# define readout function
class Readout(orc.readouts.ReadoutBase):
res_dim: int
out_dim: int
W_O: jnp.ndarray
def __init__(self, out_dim, res_dim):
super().__init__(out_dim, res_dim)
self.W_O = jnp.zeros((out_dim, res_dim))
def readout(self, res_state):
return self.W_O @ res_state
Defining a forecaster¶
We're now able to combine these three components into a Forecaster that inherits from orc.rc.RCForecasterBase.
# define RC as embedding + driver + readout
class Forecaster(orc.rc.RCForecasterBase):
driver: orc.drivers.DriverBase
readout: orc.readouts.ReadoutBase
embedding: orc.embeddings.EmbedBase
Training¶
Now that the input, driver, and readout functions are defined and pacakged into a Forecaster object, we can turn to the training procedure for the model. For some example data, we'll use a numerical integration of the Rossler system.
# integrate Rossler system
tN = 200
dt = 0.01
u0 = jnp.array([-10, 2, 1], dtype=jnp.float64)
U,t = orc.data.rossler(tN=tN, dt=dt, u0=u0)
split_idx = int(U.shape[0] * 0.8)
U_train = U[:split_idx]
U_test = U[split_idx:]
t_test = t[split_idx:]
orc.utils.visualization.plot_time_series(
U,
t,
state_var_names=["$u_1$", "$u_2$", "$u_3$"],
title="Rossler Data",
x_label= "$t$",
)
findfont: Font family ['STIXGeneral'] not found. Falling back to DejaVu Sans. findfont: Font family ['STIXGeneral'] not found. Falling back to DejaVu Sans. findfont: Font family ['STIXGeneral'] not found. Falling back to DejaVu Sans. findfont: Font family ['STIXGeneral'] not found. Falling back to DejaVu Sans. findfont: Font family ['STIXNonUnicode'] not found. Falling back to DejaVu Sans. findfont: Font family ['STIXNonUnicode'] not found. Falling back to DejaVu Sans. findfont: Font family ['STIXNonUnicode'] not found. Falling back to DejaVu Sans. findfont: Font family ['STIXSizeOneSym'] not found. Falling back to DejaVu Sans. findfont: Font family ['STIXSizeTwoSym'] not found. Falling back to DejaVu Sans. findfont: Font family ['STIXSizeThreeSym'] not found. Falling back to DejaVu Sans. findfont: Font family ['STIXSizeFourSym'] not found. Falling back to DejaVu Sans. findfont: Font family ['STIXSizeFiveSym'] not found. Falling back to DejaVu Sans. findfont: Font family ['cmsy10'] not found. Falling back to DejaVu Sans. findfont: Font family ['cmr10'] not found. Falling back to DejaVu Sans. findfont: Font family ['cmtt10'] not found. Falling back to DejaVu Sans. findfont: Font family ['cmmi10'] not found. Falling back to DejaVu Sans. findfont: Font family ['cmb10'] not found. Falling back to DejaVu Sans. findfont: Font family ['cmss10'] not found. Falling back to DejaVu Sans. findfont: Font family ['cmex10'] not found. Falling back to DejaVu Sans. findfont: Font family ['DejaVu Sans Mono'] not found. Falling back to DejaVu Sans.
The desired input (and output) dimension is that of the Rossler system, $N_y = N_u = 3$. We'll take $N_R$ = 500 for this example.
# create RC
Nr = 500
Nu = 3
driver = GRUDriver(Nr)
embedding = ELUEmbedding(Nu, Nr)
readout = Readout(Nu, Nr)
model = Forecaster(driver, readout, embedding)
Our training data can be represented in a data matrix as
$$
U_{\text{data}} = \begin{bmatrix}
| & | & & |\\
u_1 & u_1 & \cdots & u_T \\
| & | & & |
\end{bmatrix}.
$$
Now, setting $r_0 = \mathbf 0$, we can compute $r_1 = f_R(r_0, f_E(u_0))$, $r_2 = f_R(r_1, f_E(u_1))$, $\dots$, $r_T = f_R(r_{T-1}, f_E(u_{T-1}))$ to generate
$$
R_{\text{data}}\begin{bmatrix}
| & | & & |\\
r_1 & r_1 & \cdots & r_T \\
| & | & & |
\end{bmatrix}.
$$
Learning $W_O$ now just amounts to performing a Ridge regression to satisfy $$R_{data}^T W_{O}^T = U_{data}^T.$$ In practice, we discard the first spinup columns of $R_{data}$ and $U_{data}$ to remove the effect of our (arbitrary) choice $r_0 = \mathbf 0.$ The ability to discard this initial transient relies on the principle of generalized synchronization and is frequently referred to as the echo state property in RC literature.
Since we've inherited from RCForecasterBase, generating $R_{data}$ is easily accomplished in a single line.
# teacher force the reservoir
forced_seq = model.force(U_train[:-1], res_state=jnp.zeros((Nr)))
# shift the indices of the target sequence of training data
target_seq = U_train[1:]
# set transient to discard
spinup = 200
# learn W_O
readout_mat = ridge_regression(forced_seq[spinup:], target_seq[spinup:], beta=1e-7)
We'd now like to update the readout attribute of model to be equal to the learned readout_mat. However, under the hood many ORC objects are instances of equinox.Module, which are immutable. Thus, we need to create a new Forecaster object with readout.W_O set to readout_mat. This can be done with equinox's convenient tree_at function.
# define where in the forecaster model we need to update
def where(model: Forecaster):
return model.readout.W_O
model = eqx.tree_at(where, model, readout_mat)
We're now ready to perform a forecast and evaluate our trained RC!
# perform forecast
U_pred = model.forecast_from_IC(fcast_len=U_test.shape[0], spinup_data=U_train[-spinup:])
# plot forecast
orc.utils.visualization.plot_time_series(
[U_test, U_pred],
(t_test - t_test[0]) * 0.07,
state_var_names=["$u_1$", "$u_2$", "$u_3$"],
time_series_labels=["True", "Predicted"],
line_formats=["-", "r--"],
x_label= r"$\lambda _1 t$",
)
Let's summarize what we've seen in this notebook. We first defined an embedding, driver, and form of readout. We then packaged these together in a Forecaster that allowed us to easily train and evaluate the model architecture on the chaotic Rossler system. Provided that the input/output and reservoir dimensions were held fixed, we could easily switch out any of the components of the Forecaster for different forms/mappings (either from ORC or by defining new ones ourselves!). This modularity is a key benefit of ORC, especially when taken with the ease of defining new mappings.
References and footnotes¶
[1] Maas, Natschläger, and Markram, "Real-time computing without stable states: A new framework for neural computation based on perturbations," Neural Computation, 2002.
[2] Jaeger, "The “echo state” approach to analysing and training recurrent neural networks-with an erratum note," German national research center for information technology gmd technical report, 2001.
1 There is growing interest in the field of stochastic reservoir computers, especially quantum inspired RC, where one cannot always define the embedding, driver, and readout as functions.
